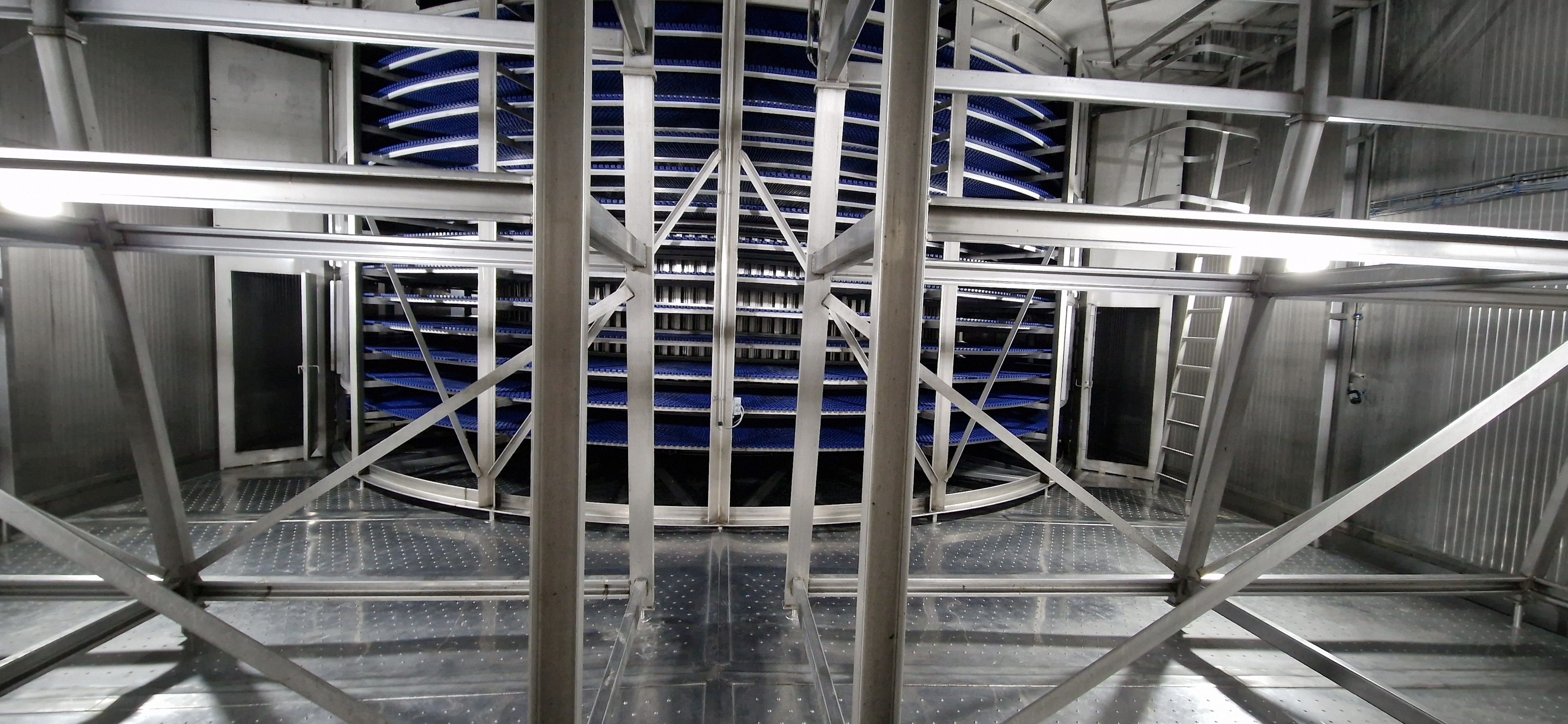

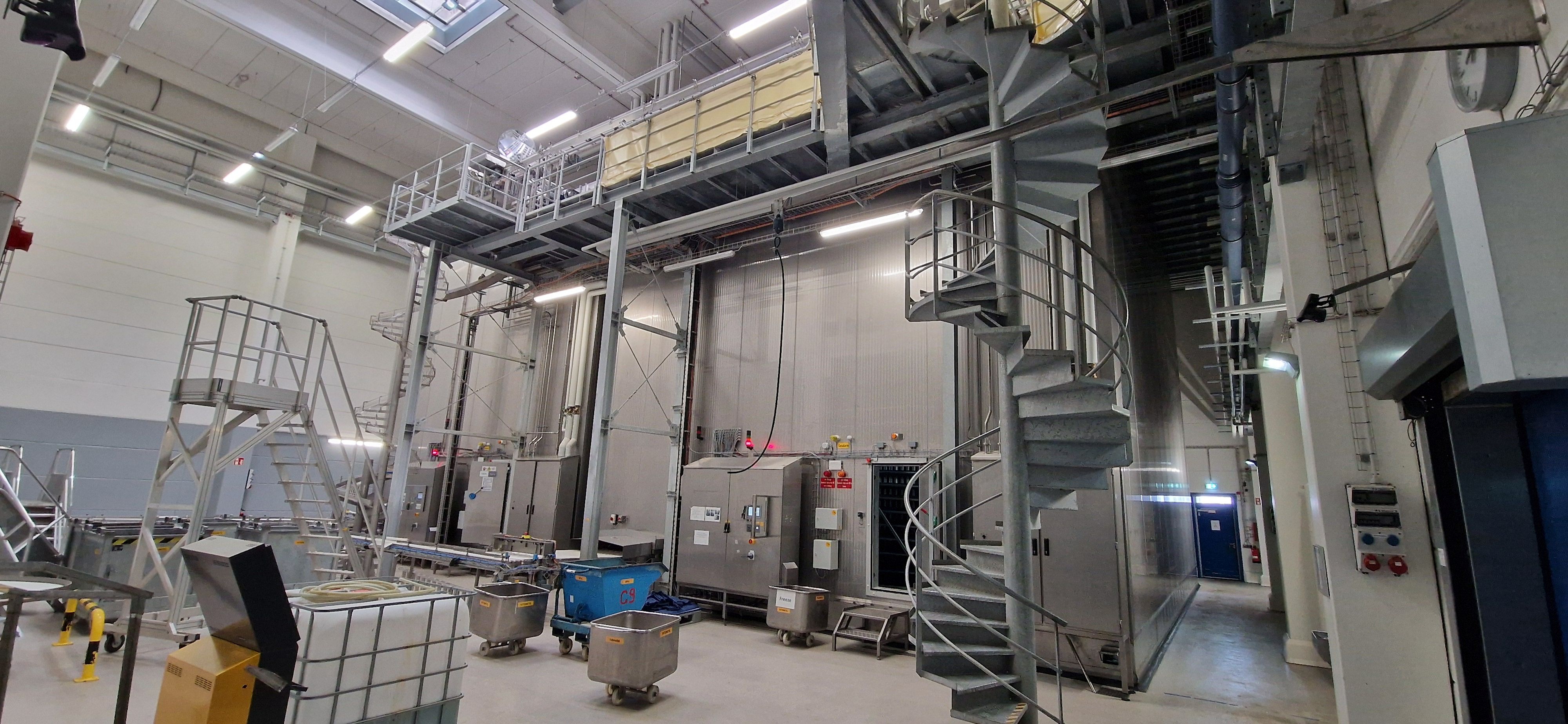

GEA A-TEC Spiral Freezer
GEA A-TEC Intralox Spiral Freezers (2 x units available)
3750Kgs/hr on German baked bread from +30C / -10C

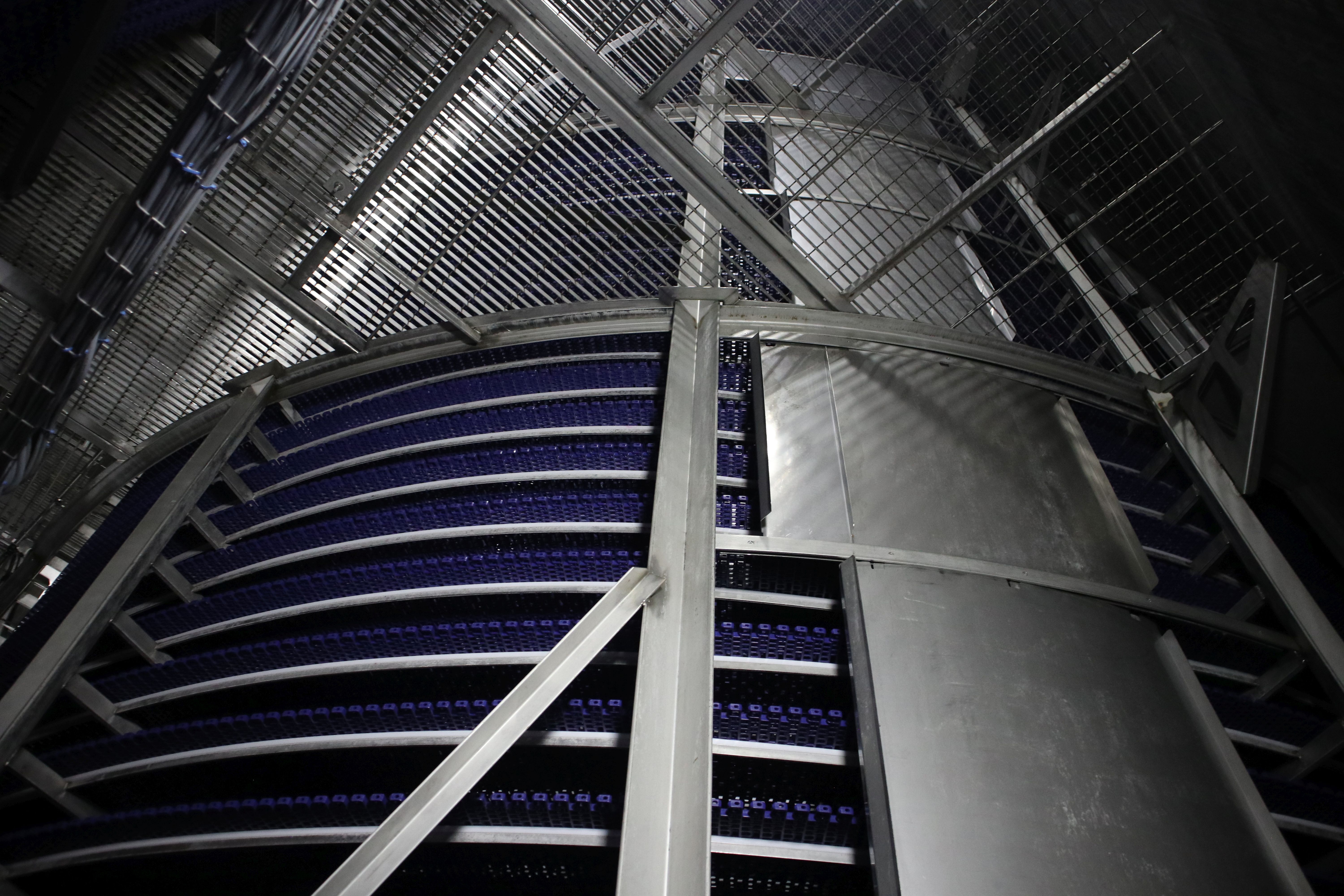

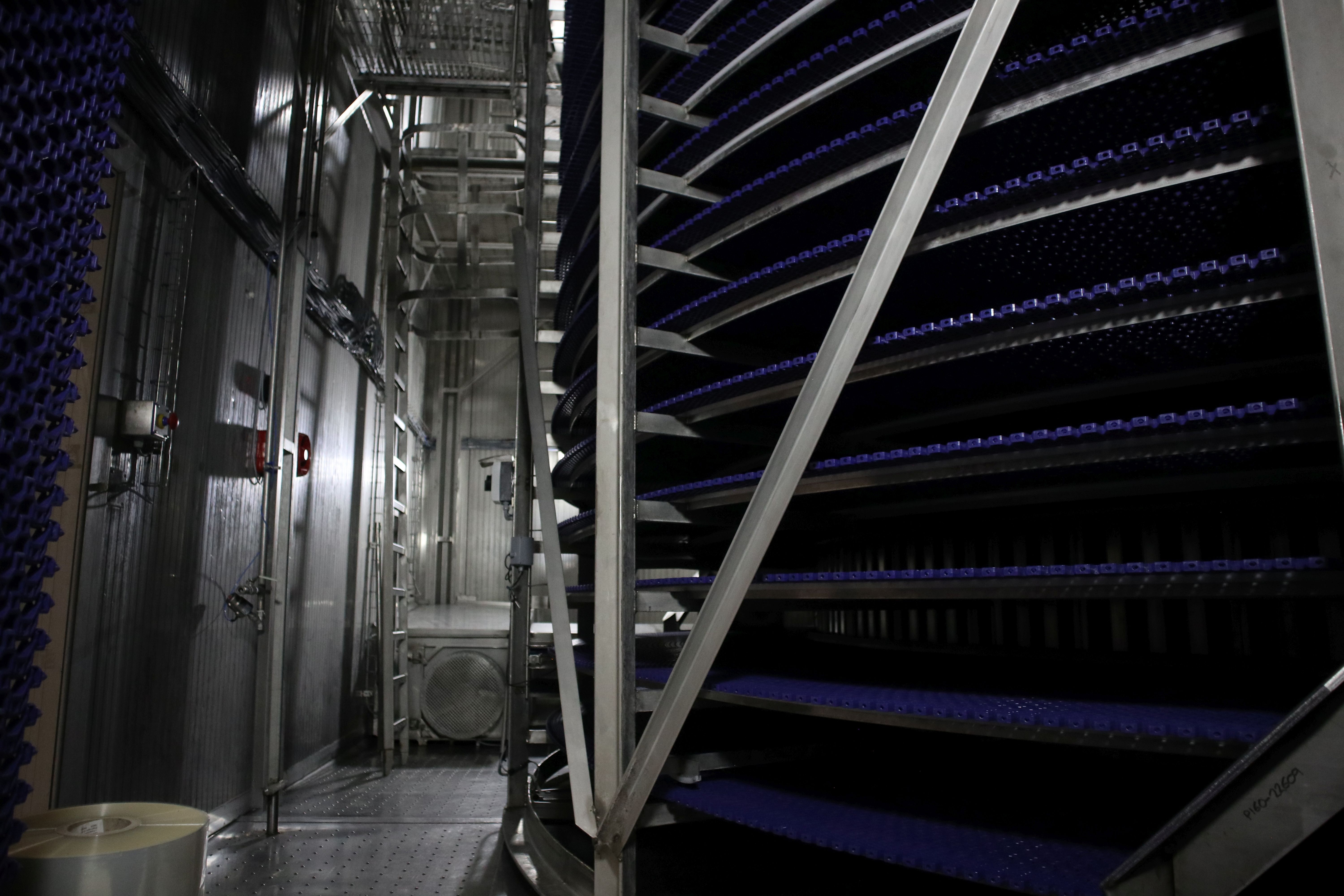

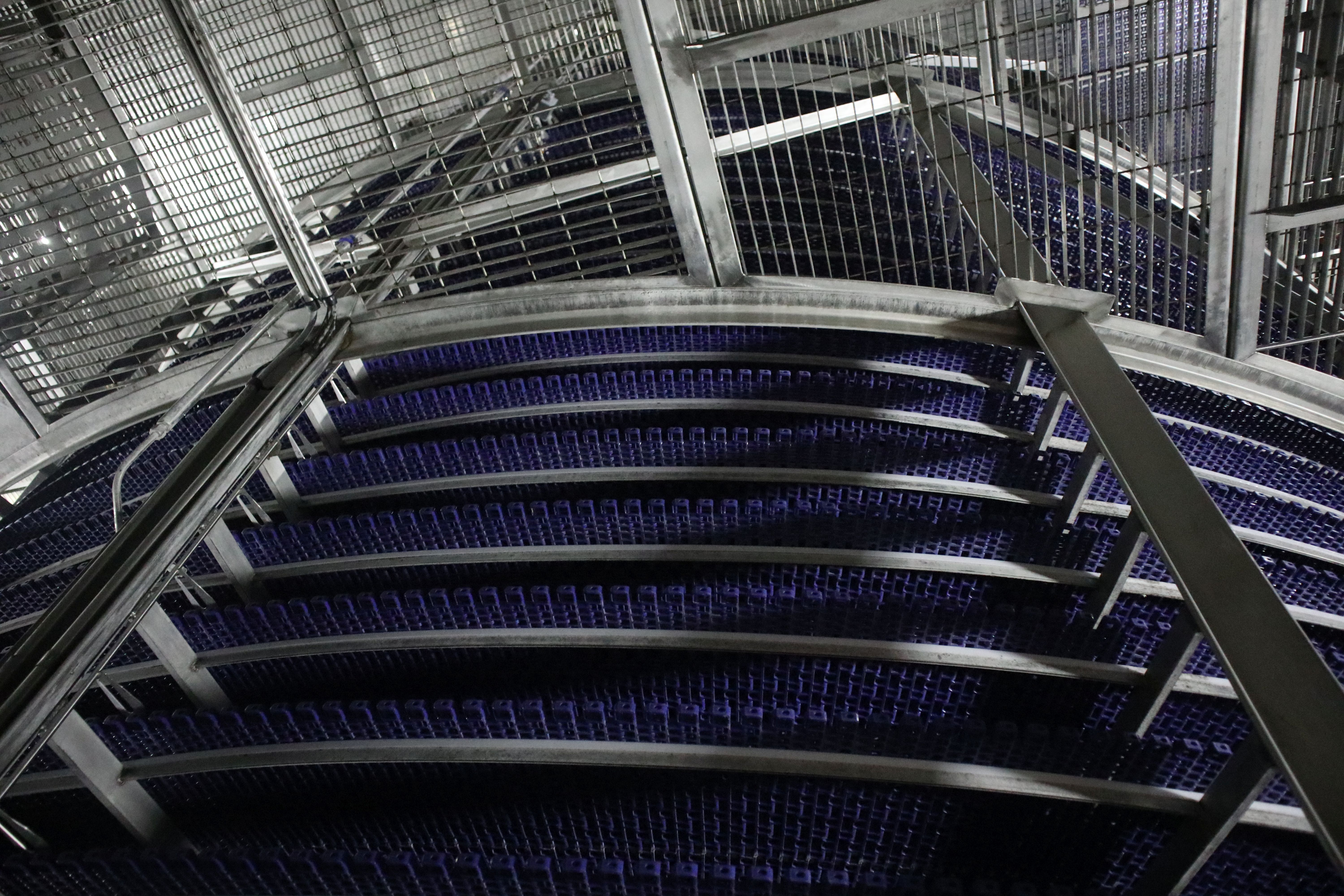

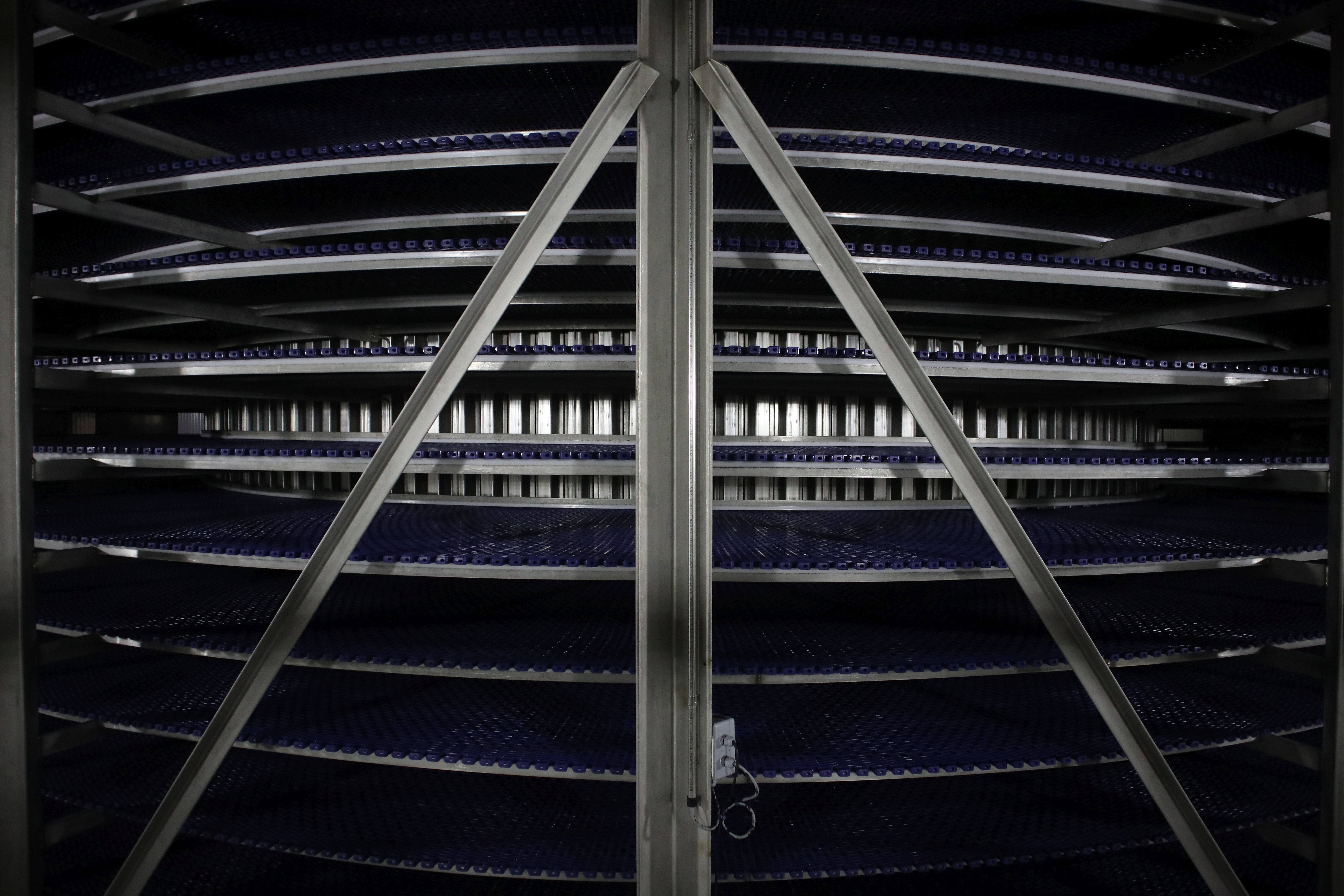

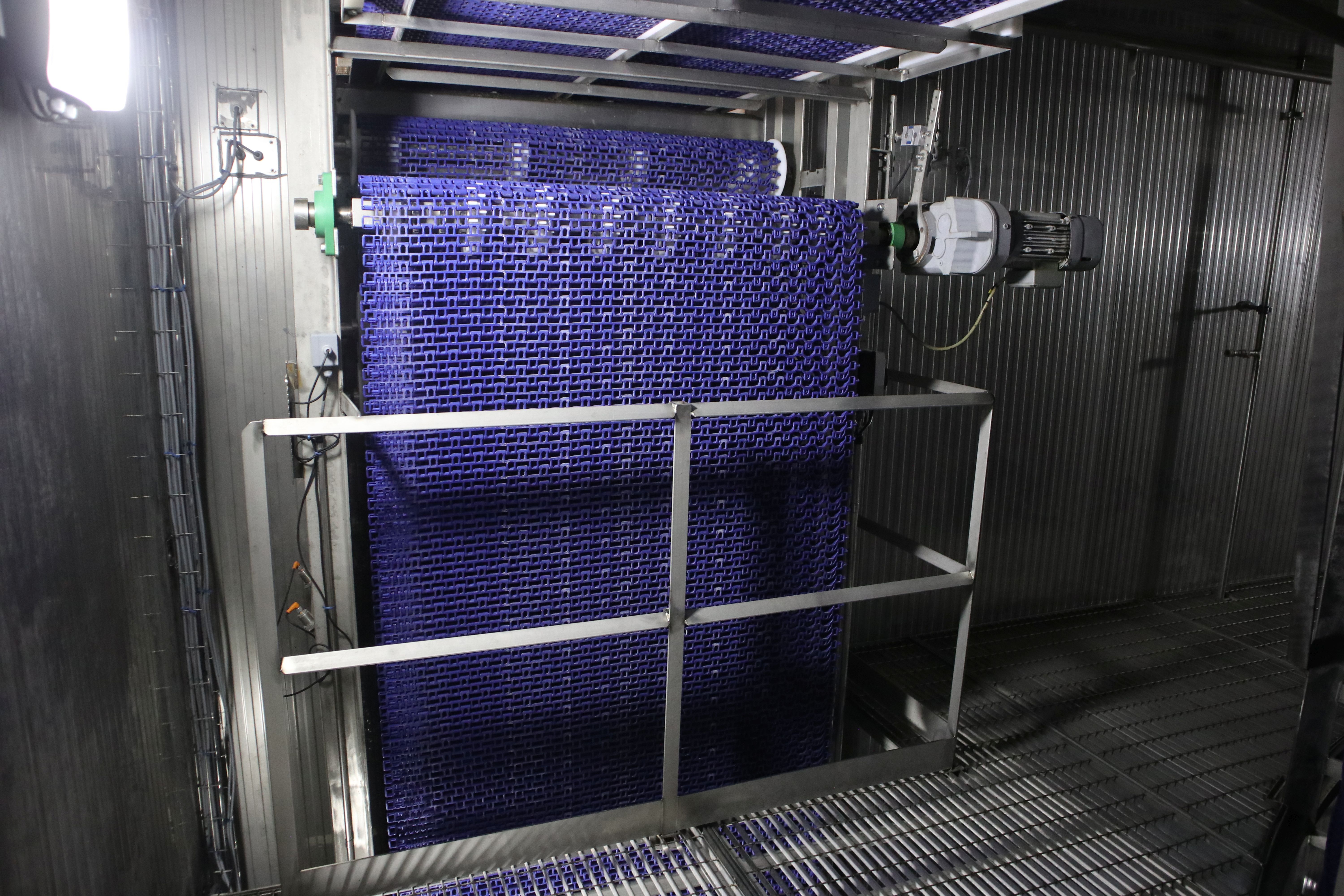

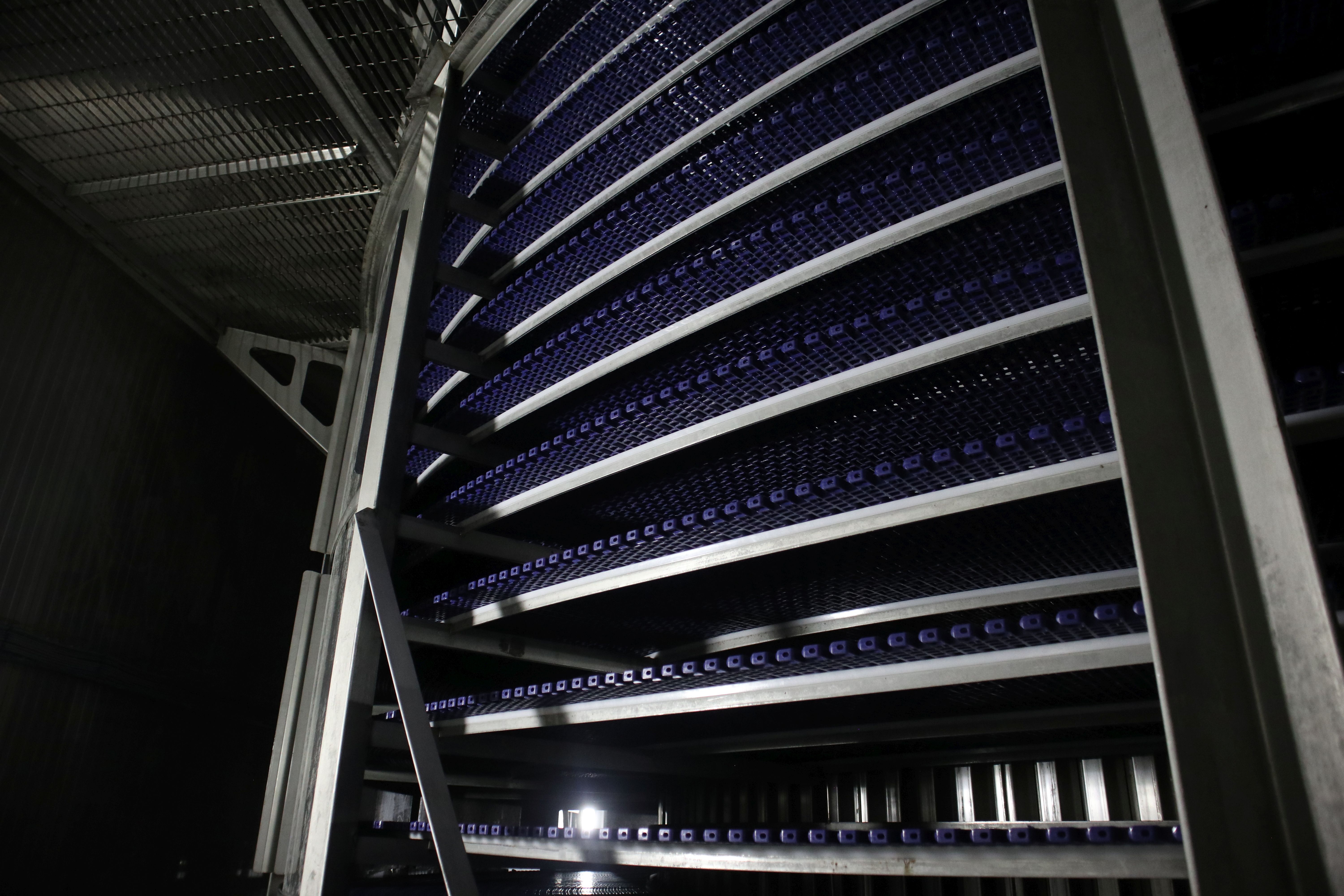

1200mm Intralox Acetal Blue S2800 belt x 33,5 effective tiers, 800M belt length, sequential defrost
| Brand | GEA |
| Type | GEA A-TEC Spiral Freezer |
| Model | A-TEC 48HL-33.5-220 SD |

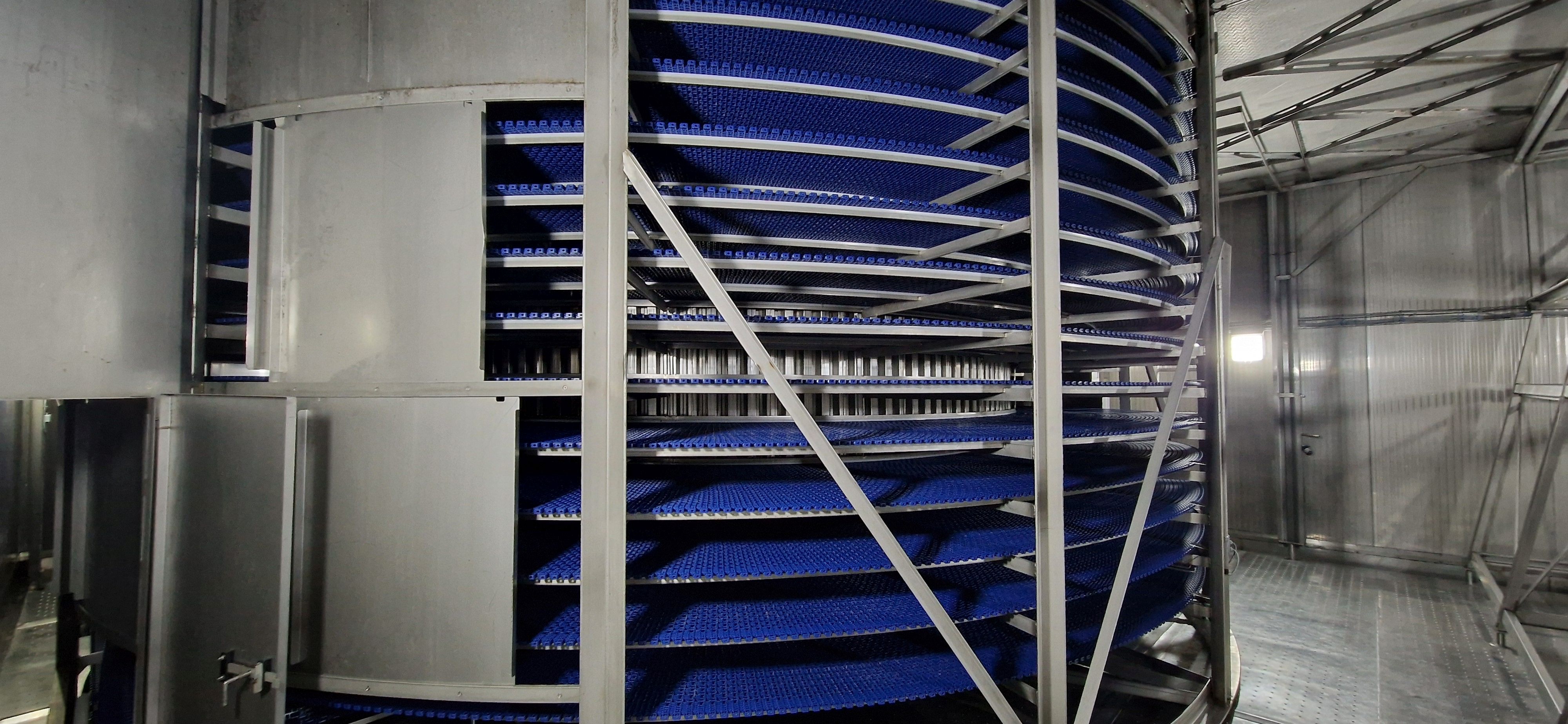

| Variety | Descending Spiral |
| Year of Construction | 2015 |
| Tiers | 33,5 |
| Product gap | 130mm |
| Link height | 220mm |

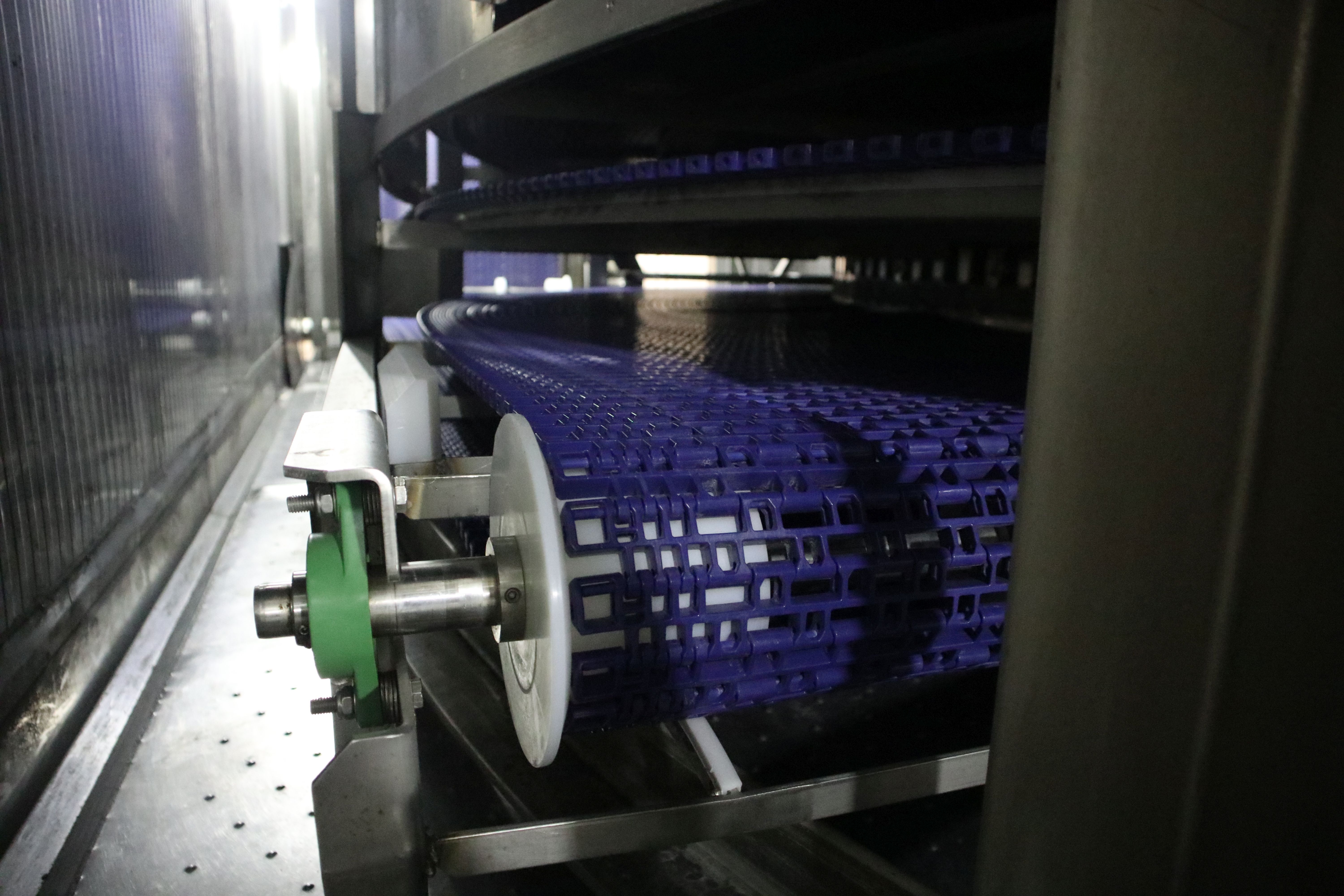

| Mesh wire thickness | Intralox Acetal Blue S2800 |
| Length per tier | 24m |
| Belt width | 1200mm / 1159mm nett usable |
| Belt length | 808m effective |
| Belt speed | Variable |
| Capacity | 3750Kgs/hr on German baked bread from +30C / -10C |

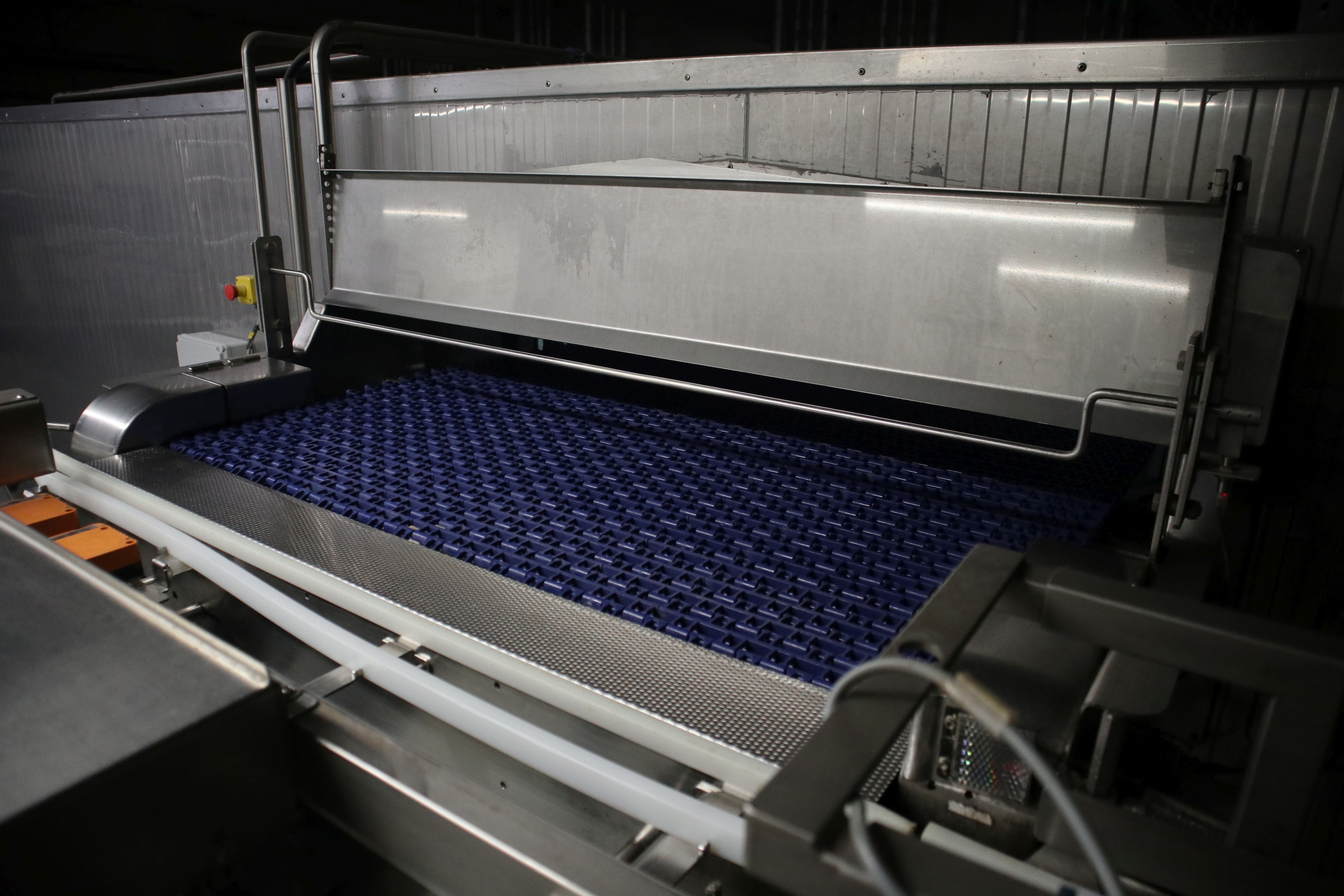

| Infeed height | 8150mm |
| Outfeed height | 800mm |
| Refrigerant | NH3 recirculated pumped, ratio 3:1 |
| Cooling power | 588kW / 441kW sequential defrost |
| Evaporator | 3 x 1 sequential defrost |
| Power | 400V 3 ph 50Hz / 61,5kW normal power consumption in op. |
| Number of fans | Total 8 x 11.0 kW / 6 x 11.0kW in operation with SD |
| Defrosting | Hot gas in coil and water flush in defrost pan |

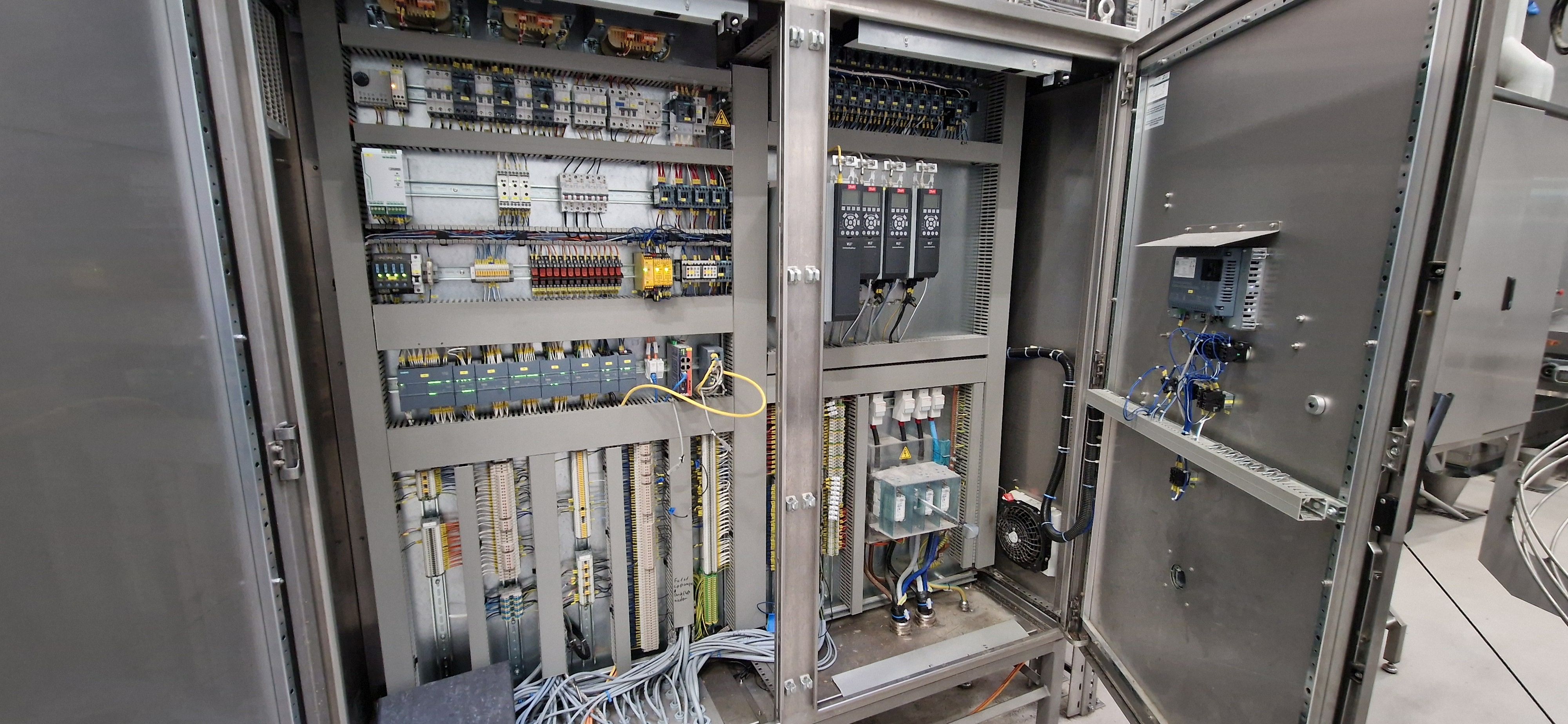

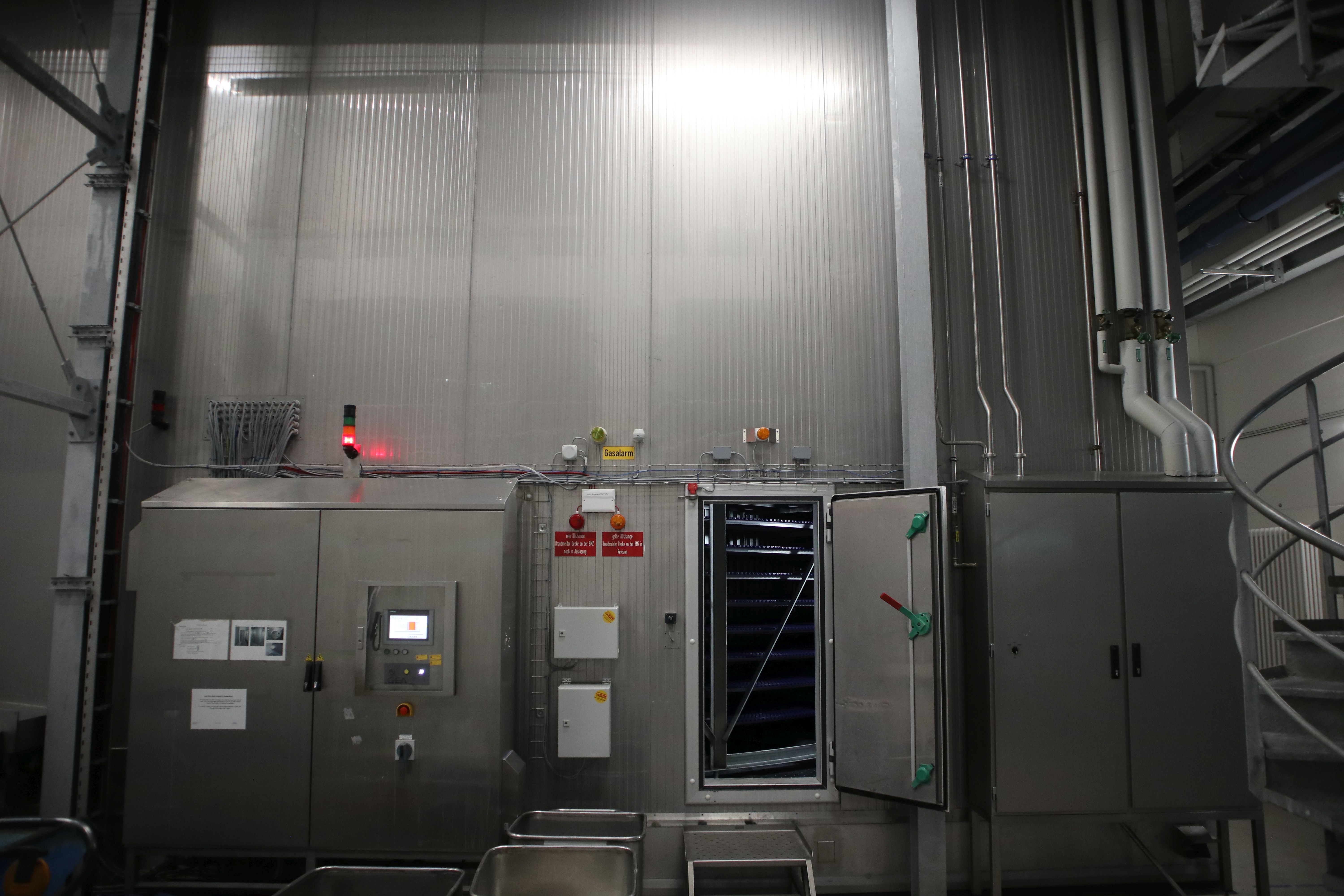

| Display | SIEMENS TOUCH |
| Dimensions | 13300mm x 9200mm x 8700mm |
| Amount in stock | 2 |
| Remarks | Full CIP |
